PRO-FLEX™ DOUBLE TWISTED WIRE GABIONS GABIONS IN STOCK!
PRO-FLEX™ Gabions are double twisted wire baskets MADE IN AMERICA and manufactured in accordance to ASTM A975-97 guidelines. They are a flexible but strong structure that can withstand flooding and impact . They come from the factory pre-assembled including tie wire ready to erect and fill with rocks.
Assembly using a hog ring gun and hog rings will save over 50% on larger projects
QUANTITY DISCOUNTS APPLY
IN STOCK – SHIPS NEXT DAY !

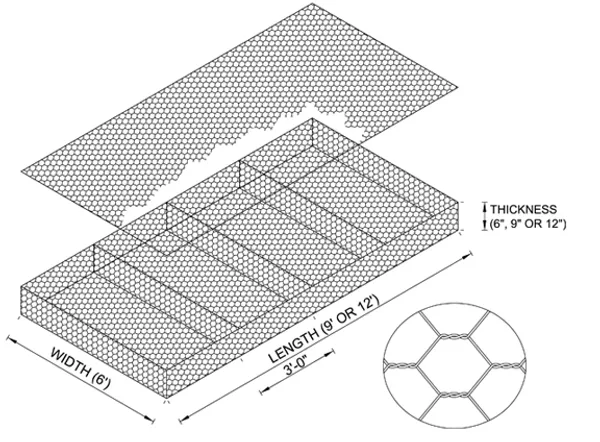

PRO-FLEX™ “RENO” GABION MATTRESSES
PRO-FLEX™ “Reno” Gabion Mattresses are low profile mattress shaped wire mesh containers constructed of double twisted woven galvanized steel wire mesh and manufactured to ASTM A975-97 standards. The compartments or cells of the reno mattress are of equal size and dimension and are formed by internal diaphragms being placed within the basket providing even distribution of the stone fill throughout the mattress even after structural movement. Even distribution of the stone fill ensures that the
Reno Mattress maintains intimate contact with the foundation soil.
Assembly using a hog ring gun and hog rings will save over 50% on larger projects
PRO-TEC™ WELDED WIRE GABIONS

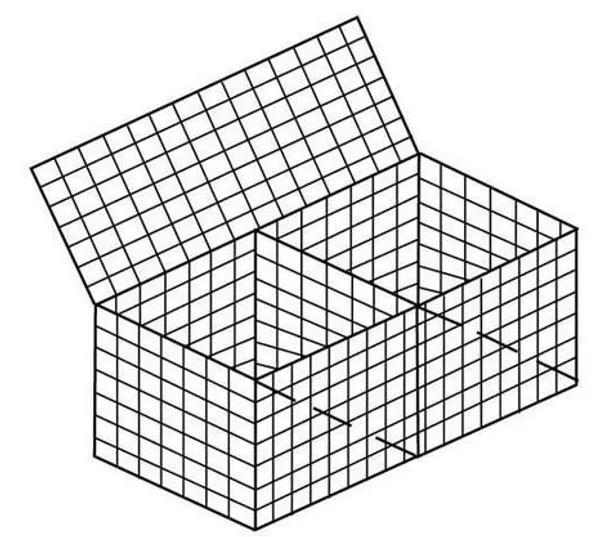

Shown here is a typical 6′ x 3′ x 3′ PRO-TEC™ Welded wire gabion with 3″ x 3″ square openings. Gabions come standard in 11 ga or 9 ga galvanized or galvanized & PVC coated wire mesh. Gabions are pre-assembled with wire panels joined together in the factory, stacked flat for shipping, and delivered ready to erect, install and fill with rocks.
Included is all assembly components: helical spirals to mend panel seams, corner stiffener rods plus tie wire to reinforce basket cells and prevent bulging
We also offer Stainless Steel and Galfan Gabions + extra heavy 6 ga wire + smaller mesh openings
GABIONS IN STOCK
STANDARD SIZE PRO-FLEX™ GABIONS – IN STOCK
We usually stock PRO-FLEX™ Gabion baskets in both Galvanized or PVC coated versions also “Reno” Mattresses in standard sizes
Factory direct next day shipping!
STANDARD SIZE GABION BASKETS
11 GA GALVANIZED STEEL WIRE GABIONS
- Diameter of mesh wire: 0.120 Inches
- Diameter of selvedge wire: 0.153 inches
- Diameter of lacing wire: 0.091 inches
- Coating of wire: finish 5 class 3 zinc coating – ASTM A-641 tested m accordance with ASTM A370-92.
- Tensile of wire: soft temper in accordance with ASTM A641-92
- Weight of zinc coating of wire: shall be determined by ASTM A-90 wire diameter of 0.120 inches shall have a weight of zinc coating of: 0.85 oz/sf
- Wire diameter of 0.153 inches shall have a weight of zinc coating of: 0.90 oz/sf
- Wire diameter of 0.091 inches shall have a weight of zinc coating of: ORO oz/sf
- Grade of zinc coating of wire: high grade or special high grade in accordance with ASTM B-6, Table 1
- Uniformity of coating: shall be determined by ASTM A-239
- Elongation: not less than 12% in accordance with ASTM A370-92.
12 GA GALVANIZED & PVC COATED STEEL WIRE GABIONS
- PVC coated galvanized steel wire: mesh opening 3 1/4 by 4 1/2 inches
- Diameter of mesh core wire: 0.1063 inches
- Diameter of mesh core wire plus PVC coating: 0.146 Inches
- Diameter of selvedge core wire: 0.1338 inches
- Diameter of selvedge core wire plus PVC coating: 0.173 inches
- Diameter of lacing core wire: 0.091 inches
- Diameter of lacing core wire plus PVC coating: 0.127 inches
- Zinc coating of Wire: finish 5 class 3 zinc coating ASTM A-641 tested in accordance with ASTMA370-92.
- Tensile of wire: soft temper in accordance with ASTM A-641-92
- Weight of zinc coating of wire: shall be determined bv ASTM A-90
- Core wire for mesh: 0.8.5 oz/sf of zinc
- Core wire for selvedge: 0.90 oz/sf
- Core wire for lacing: 0.80 oz/sf
- Grade of zinc coating of wire: high grade or special high grade in accordance with ASTM B-6.
- Uniformity of coating: shall be determined by ASTM A-239
- Elongation: not less than 12% in accordance with ASTM A -370-92 nominal thickness of PVC coating: 0.0216 inches, not less than 0.015 inches
SEA GUARD™ MARINE GABIONS
SEA LEVELS ARE RISING !
Shoreline protective walls constructed of SEA GUARD™ MARINE GABIONS – SACK GABIONS & HESCO FLOOD BARRIERS. They are viable solutions that can play a vital role in providing protection against rising sea levels worldwide
“These marine gabions will last a lifetime in salt water “
GABION TOOLS & ACCESSORIES
PNEUMATIC HOG RING GUN
MANUAL HOG RING TOOL
Model KC1511
Our Model KC1511 is a heavy duty commercial grade tool designed to firmly close hi-tensile steel and stainless steel hog rings.
This is a manually operated tool and commonly used to dispense and firmly close hog rings in remote locations not accessible to an air compressor.
The tool is designed for long service life and easy maintenance.
“C” STYLE HOG RINGS
HI-TENSILE GALVANIZED STEEL HOG RINGS
These 11 ga hi-tensile galvanized gabion hog rings come packed 1600 per box with 40 magazine strips for quick loading into the pneumatic or manual ring closing tools
Note: Using hog rings instead of spirals and tie wire to assemble and install gabions will save over 50% in labor cost
